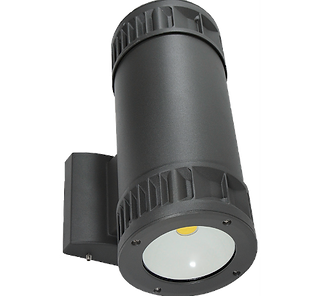

PWC1-S
Up or Down LED Wall Cylinder

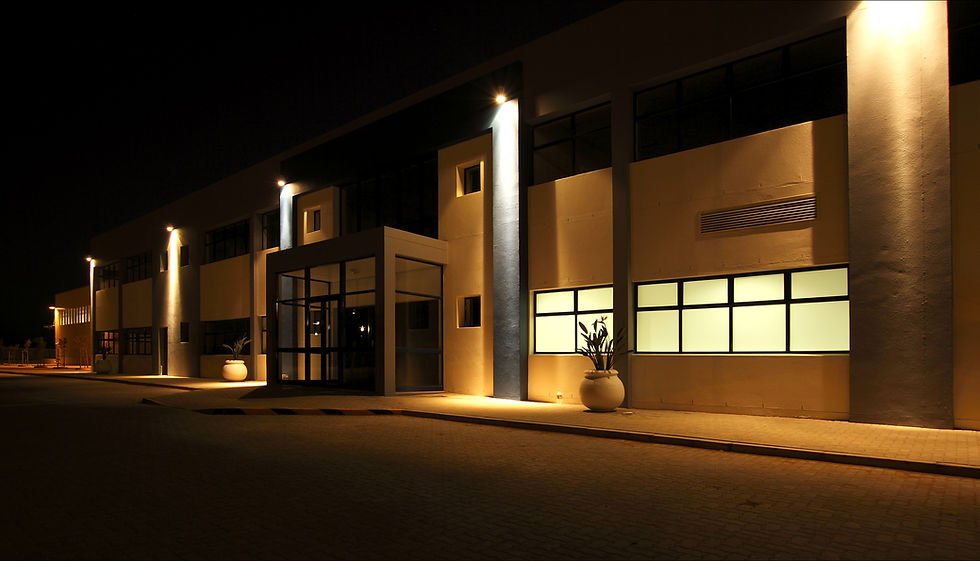

The Pantheon PWC1-S is a high-performance up or down wall cylinder with an attractive design well suited for commercial outdoor lighting applications. The luminaire incorporates CoB technology with reflective optics to provide a choice of medium, wide, or extra-wide beam distributions for recommended mounting heights from 8 to 16 feet. Options include fusing, surge protection, button photocell, and emergency battery backup. Standard finishes are dark bronze or black.
ORDERING INFORMATION
LUMINAIRE
MODEL
CCT
DRIVER
SINGLE OPTICS
MOUNTING
OPTIONS
PWC1-S-UP
Uplight Only Wall Cylinder
​
PWC1-S-DN
Downlight Only Wall Cylinder
16W-30K
16 Watts, 3000K Array
​
16W-40K
16 Watts, 4000K Array
​
16W-50K
16 Watts, 5000K Array
​
20W-41K
20 Watts, 4100K COB*
UNV
120-277V
NB
Narrow 30° Beam
​
MB
Medium 70° Beam*
​
WB
Wide 100° Beam
DB
Dark Bronze
​
BL
Black
​
CC
Custom RAL Color
SF
Single Fuse
​
DF
Double Fuse
​
SP
Surge Protection
​
PCR3
3-Pin Factory-Installed Photocell
​
EM
Emergency Battery Backup
​
EMC
Cold-Start Emergency Battery Backup
-20° C @ 90 Minutes
*See Specification sheet for full details on all products
