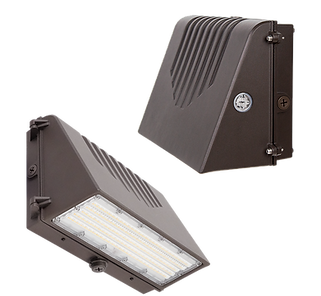

PC-CWP
CCT and Power Adjustable Full Cutoff Wall Pack
The PC-CWP is a dark-sky-friendly full cutoff wall pack, offering field-selectable CCT (3000K, 4000K, 5000K) and power levels, delivering up to 17,000 lumens. Available in standard or high lumen packages, it includes an integral photocell with on/off switch, and is screw-in sensor ready for additional occupancy controls. An optional 8-watt emergency battery backup is available. The robust cast aluminum housing with a dark bronze powder coat finish and durable polycarbonate lens ensures long-lasting performance, while DLC Premium approval supports maximum efficiency and rebate eligibility.
ORDERING INFORMATION
LUMINAIRE
MODEL
LUMEN PACKAGE
CCT
CONTROL
INPUT VOLTAGE
FINISH
OPTIONS
PC-CWP
Pantheon Core Full Cutoff Wall Pack​
SO
9,000 to 5,000 Lumens
Standard Lumen Package
​​​​​
HO
17,000 to 10,000 Lumens
High Lumen Package
SK
Selectable Kelvin
(3000K/4000K/5000K)
DIM
0-10v Dimming
UNV
120-277V
DB
Dark Bronze
EM8
8-Watt Emergency Battery Backup Driver
*See Specification sheet for full details on all products
 |  |  |
|---|
