PBR1-F
.png)
Flat-Top Illuminating

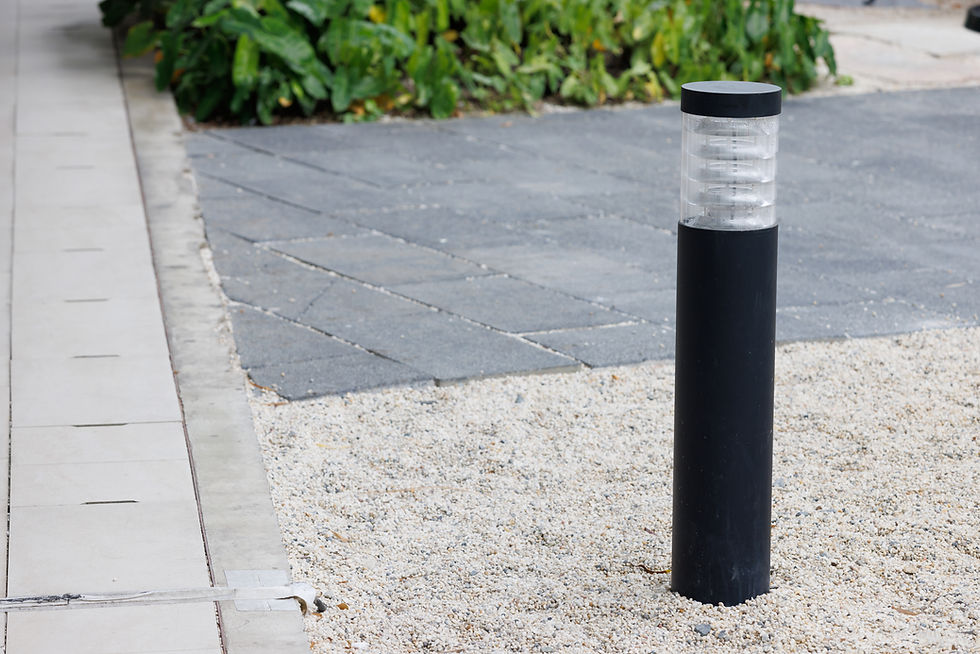

The PBR1-F illuminating bollard is an economical versatile flat-top bollard ideal for retail centers, business parks, schools, transit centers, and medical facilities. Two optical distributions combined with a glass lens, white or silver cone reflector, or louvers achieve the desired coverage of areas while a choice of lumen packages and color temperatures ensure the right solution for a wide variety of applications. Options include GFCI outlet, fusing, surge protection, shielding, emergency battery backup, and microwave motion sensors. Lumen output is equivalent to 70W metal halide.

ORDERING INFORMATION
LUMINAIRE
MODEL
HEIGHT
OUTPUT
CCT
VOLTAGE

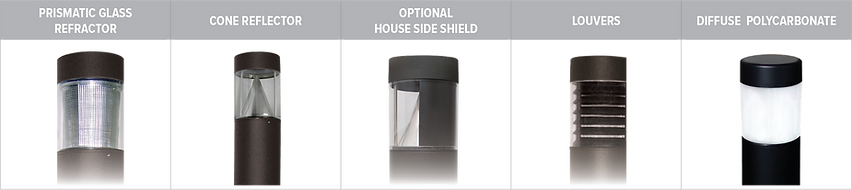

OPTIC
LENS
FINISH
OPTIONS
PBR1-F
Flat-Top
Illuminating
Bollard​
42
42"
​
36
36"
​
30
30"
​
LO
Low Output: 10w
​
SO
Standard Output: 15w
​​
HO
High Output: 22w
30K
3000K
​
40K
4000K
​​
50K
5000K
UNV
120-277V
​
347V
347-480V
T3
Type III
​​
T5
Type V
PGR
Prismatic Glass Lens
​
SCR
Specular Cone Reflector
​
WCR
White Cone Reflector
​
LVR
Louvers
​
DPC
Diffuse Polycarbonate w/ White Cone Reflector
​
DB
Dark Bronze
​
CC
Custom RAL Color
SF
Single Fuse (120-277V only)
​
DF
Double Fuse (120-277V only)
​
SP
Surge Protection
​
GFCI
GFCI Outlet
(15A, 120V)
​
HSS180BL
180° House-Side Shield, Black
​
HSS180DB
180° House-Side Shield, Dark Bronze
​
HSS180CC
180° House-Side Shield, Custom Color
​
MSDP
Internal Microwave Sensor
​
EM
Emergency Battery Backup
​
EMCS
-4°F Cold Start Emergency Battery Backup (90 Minutes, 120-277v Only)
*See Specification sheet for full details on all products
![]() | ![]() | ![]() | ![]() |
|---|---|---|---|
![]() |
